Solar Regulator
What Is Solar Regulator
Another Expression of Solar Charge and Discharge Controller
Solar regulator, also named as solar charge and discharge controller, is an automatic control device used in solar energy systems to control the charging of batteries by solar panels and the power supply of batteries to the load of solar inverters. It regulates and controls the charging and discharging conditions of the battery, and controls the power output of the solar panel and battery to the load according to the power demand of the load. It is the core control part of the entire solar energy supply system.
Solar panel belongs to photovoltaic equipment (mainly composed of semiconductor materials), which generates current through photoelectric effect after being irradiated by light. Due to the properties and limitations of materials and light, the current generated by them is also a curve with volatility. If the generated current is directly charged into the battery or directly supplied to the load, it is easy to cause damage to the battery and load, which seriously reduces their life. Therefore, we must first send the current to the solar regulator, use a series of special chip circuits to digitally adjust it, and add multi-level charge and discharge protection. At the same time, we use our unique control technology "adaptive three-stage charging mode" to ensure the safe operation and service life of the battery and load. When supplying power to the load, it is also to let the current of the battery flow into the solar regulator first, and then send the current to the load after its adjustment. The purpose of this is: first, to stabilize the discharge current; Second, to ensure that the battery will not be over discharged; Third, it can carry out a series of monitoring and protection on the load and battery.
In a word, almost all solar energy systems powered by batteries need a solar regulator extremely. The function of the solar regulator is to regulate the power transmitted from the solar panel to the battery. The battery overshoot will significantly reduce the battery life, or even damage the battery.
The solar regulator is mainly divided into MPPT solar regulator and PWM solar regulator.
Wonder1 Series MPPT Solar Regulator
Maximum Power Point Tracking, 10A-100A 12V-384V
Technical Parameter:
Rated Current: 10A/20A/30A/40A/50A/60A/80A/100A
Rated Voltage: 12V/24V/48V Auto Recognition, 96V/192V/216V/240V/384V
Max Solar Input Voltage: 150V(12V/24V/48V Solar Regulator), 300V(96V Solar Regulator), 450V(192V/216V Solar Regulator), 500V(240V Solar Regulator), 800V(384V Solar Regulator)
Feature:
1.The full name of MPPT regulator is maximum power point tracking, which is an upgrade of traditional solar regulator. Compared with PWM regulator, the power generation efficiency of MPPT is increased by 20%.
2.Intelligent battery management function, extend battery life.
3.RS485 communication port optional.
4.Over-voltage, under-voltage, over-temperature, solar and battery anti-reverse protection.
5.Customizable color and logo.
MPPT Solar Regulator Wiring Diagram (Wonder1)
-
10A-100A 12V-48V MPPT Solar Regulator Wiring Diagram
-

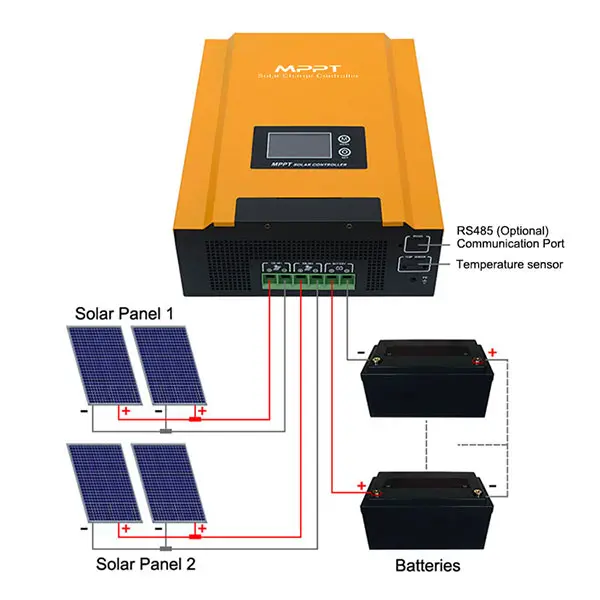

50A-100A 96V-384V MPPT Solar Regulator Wiring Diagram
KY1 Series PWM Solar Regulator
Pulse Width Modulation, 10A-60A 12V-48V
Technical Parameter:
Rated Current: 10A/20A/30A/40A/50A/60A
Rated Voltage: 12V/24V Auto Recognition, 48V
Max Solar Input Voltage: 50V(12V/24V Solar Regulator), 100V(48V Solar Regulator)
Feature:
1.PWM charging mode, save cost. PWM solar regulator is very suitable for small power solar energy system.
2.Multiple working modes to adapt different working occasion.
3.Over charge, over discharge, over load and anti-thunder protection.
PWM Solar Regulator Wiring Diagram (KY1)
-

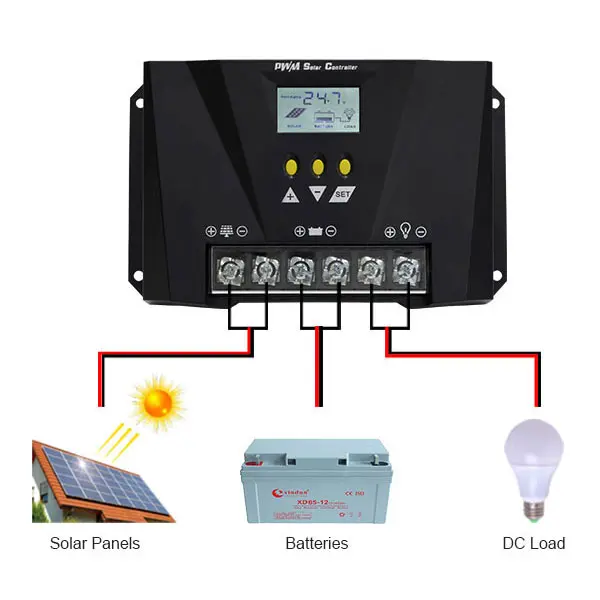

10A-60A 12V-48V PWM Solar Regulator Wiring Diagram
-
10A-60A 12V-48V PWM Solar Regulator Wiring Diagram
KY1 Series PWM Solar Regulator
Pulse Width Modulation, 50A-200A 96V-384V
Technical Parameter:
Rated Current: 50A/100A/80A/150A/200A
Rated Voltage: 96V/192V/120V/384V
Max Solar Input Voltage: 200V(96V Solar Regulator), 250V(120V Solar Regulator), 400V(192V Solar Regulator), 750V(384V Solar Regulator)
Feature:
1.PWM charging mode, save cost. PWM solar regulator is more suitable for general home, villa, industrial solar energy system.
2.RS485 Communication port optional.
3. Battery type:VRLA battery. Charging and discharging parameters of different types of batteries can be customized according to users.
4.LCD display solar charge date, battery and DC load condition.
5.Over charge, over discharge, over load and anti-thunder protection.
6.Customizable color and trademark.
PWM Solar Regulator Wiring Diagram (KY1)
-
50A-100A 96V-384V PWM Solar Regulator Wiring Diagram
-

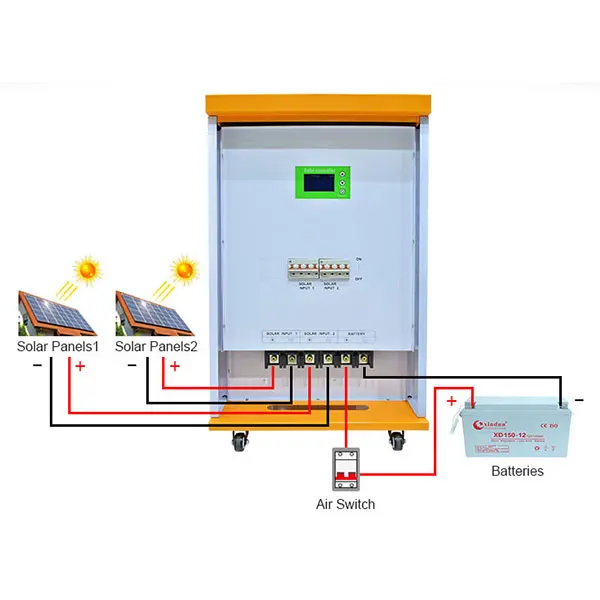

150A-200A 96V-384V PWM Solar Regulator Wiring Diagram
Application of Solar Regulator
Applicable To Solar Energy System In Various Occasions
The solar regulator itself is born for the solar energy system and control the charging and discharging of solar energy system. Solar regulator and solar energy system can be seen in home, plateau, island, pastoral area, border post, irrigation, transportation, communication, petroleum, ocean, power station, automobile and other fields. The following is some real pictures of the application and installation of the solar regulator of Xindun Company for customers to see.
-

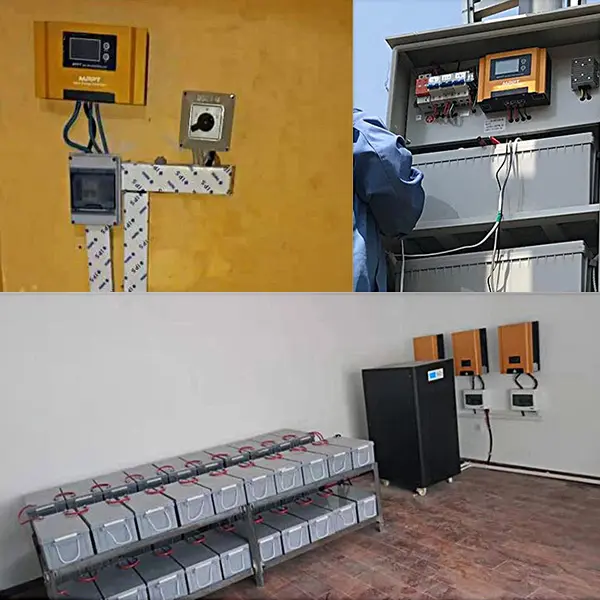

mppt solar regulator application
-

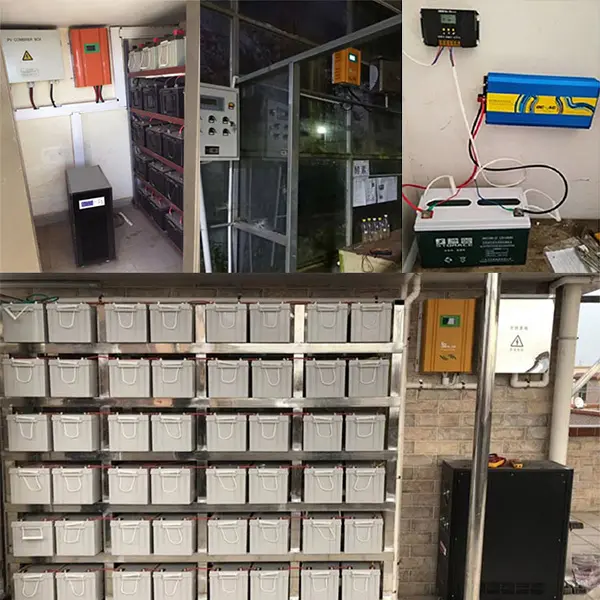

pwm solar regulator application
China Solar Regulator Factory
10,000 Square Meters Production Plant
-
china solar regulator factory
-
china solar regulator factory
-
china solar regulator factory
-
china solar regulator factory
Xindun Power solar regulator for sale. Xindun is a solar energy company with its headquarter and factory in China. Its overseas offices include Nigeria, Kenya, Senegal, Pakistan, the Philippines and Indonesia. With a history of 16 years, the factory has expanded its production scale year by year. Now, the factory has an area of nearly 10,000 square meters, 8 subdivided production lines and a perfect quality inspection department. China has the most complete production and supply chain in the world, and is a labor-intensive country. Choose China solar regulator factory as your long-term cooperation partner, will be the wisest choice in your procurement process.
Xindun not only sells solar regulator, but also provides a complete set of solutions and complete supporting services. Our customers cover Africa, the Middle East, South Asia, Southeast Asia, Latin America and Oceania.
If you are preparing to purchase solar regulator in bulk, or you want to engage in this solar energy industry and are confused about how to choose a solar regulator factory, please contact Xindun and give us an opportunity to serve you with your heart. Finally, please remember that China solar regulator for sale, China solar regulator for sale, China solar regulator for sale!!!
